Visual Photometric Tool™
Outdoor Photometric Report
Catalog: HSL13 3LONG L LED 30K MVOLT
Test #:
ISF 20684P2
Test Lab:
ACUITY BRANDS LIGHTING, DECATUR LAB
Catalog:
HSL13 3LONG L LED 30K MVOLT
Description:

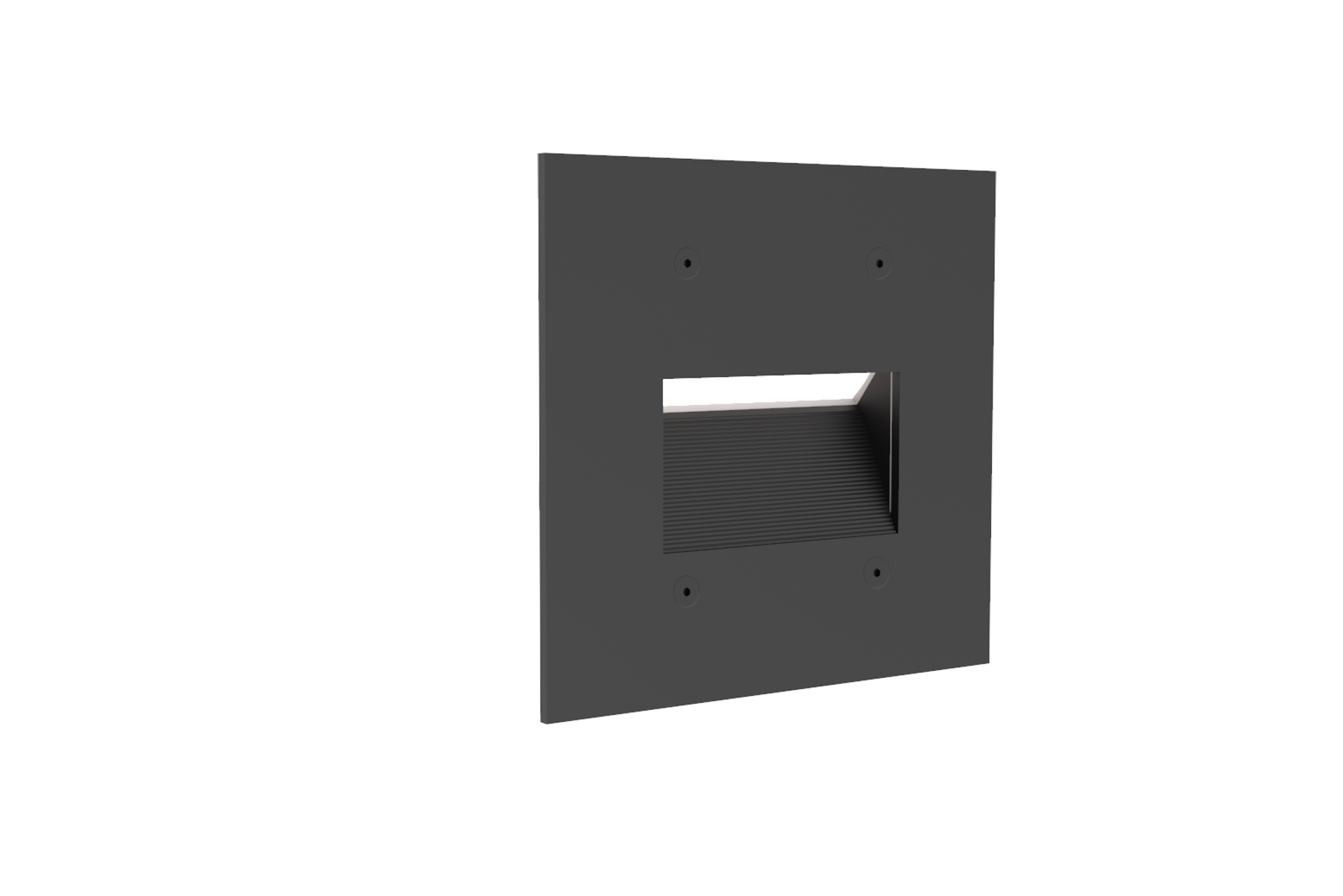

Suface mount step light
Series:
HYSTEP13 3 Inch
Lamp Output:
Total luminaire Lumens: 83.7,
absolute photometry *
Input Wattage:
2.8
Luminous Opening:
Rectangle (L: 2.04", W: 3")
Max Cd:
65.0 at Horizontal: 0°, Vertical: 50°
Roadway Class:
VERY SHORT, TYPE IV
See report notes **
Product Links
ISF 20684P2
Visual Photometric Tool
Page 1 of 4
Outdoor Photometric Report
Catalog: HSL13 3LONG L LED 30K MVOLT
Zonal Lumen Summary
Zone
Lumens
% Luminaire
0-30
3.2
3.8%
0-40
12.6
15%
0-60
42.1
50.3%
60-90
41.7
49.7%
0-90
83.7
100%
Lumens Per Zone
Zone
Lumens
% Total
0-10
0.000
0.0%
10-20
0.009
0.0%
20-30
3.2
3.8%
30-40
9.4
11.2%
40-50
12.7
15.1%
50-60
16.8
20.1%
60-70
18.2
21.8%
70-80
18.0
21.5%
80-90
5.4
6.5%
Roadway Summary
Distribution:
TYPE IV, VERY SHORT
Max Cd, 90 Deg Vert:
2.0
Max Cd, 80 to <90 Deg:
51.0
Lumens
% Lamp
Downward Street Side:
83.7
100%
Downward House Side:
0.000
0%
Downward Total:
83.7
100%
Total Lumens:
83.7
100%
LCS Table
BUG Rating
B0 - Ux - G0
Forward Light
Lumens
Lumens %
Low(0-30):
3.2
3.8%
Medium(30-60):
38.9
46.4%
High(60-80):
36.2
43.3%
Very High(80-90):
5.4
6.5%
Back Light
Low(0-30):
0.000
0%
Medium(30-60):
0.000
0%
High(60-80):
0.000
0%
Very High(80-90):
0.000
0%
Trapped Light:
0.0
0%
ISF 20684P2
Visual Photometric Tool
Page 2 of 4
Outdoor Photometric Report
Catalog: HSL13 3LONG L LED 30K MVOLT
ISF 20684P2
Visual Photometric Tool
Page 3 of 4
Outdoor Photometric Report
Catalog: HSL13 3LONG L LED 30K MVOLT
Candela Table - Type C
0
22.5
45
67.5
90
112.5
135
157.5
180
0
0
0
0
0
0
0
0
0
0
5
0
0
0
0
0
0
0
0
0
10
0
0
0
0
0
0
0
0
0
15
0
0
0
0
0
0
0
0
0
20
1
1
0
0
0
0
0
0
0
25
59
29
1
0
0
0
0
0
0
30
61
61
7
0
0
0
0
0
0
35
62
62
31
0
0
0
0
0
0
40
63
62
30
0
0
0
0
0
0
45
64
63
30
4
0
0
0
0
0
50
65
63
29
17
0
0
0
0
0
55
65
64
29
28
0
0
0
0
0
60
65
63
28
27
0
0
0
0
0
65
65
63
28
25
0
0
0
0
0
70
65
62
27
19
0
0
0
0
0
75
65
61
25
18
0
0
0
0
0
80
50
51
25
20
0
0
0
0
0
85
7
9
6
2
0
0
0
0
0
90
2
2
1
1
0
0
0
0
0
ISF 20684P2
Visual Photometric Tool
Page 4 of 4
